12 inch industrial touch screen display 1920*720 650nit for industrial
12 inch capacitive touch panel manufacturers

12 inch industrial touch screen display 1920*720 650nit for industrial

Product Specification:
  • Model : JFC121CFSS.V0
  • Size : 12.3 inch
  • Resolution : 1920*720
  • Brightness : 650 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 12.3inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size:  12.3inches (diagonal)
Resolution: 1920*720
Active Area: 292.032*109.512mm (H*V)
Brightness: 650 cd/m2 (Typ.)
View Angle: 89/89/89/89(Typ.)(L/R/U/D)
Contrast Ratio: 800:1
Interface: 60Pin LVDS (2 ch,8-bit),FPC
Frequency: 60Hz
Backlight Lifetime: 10K hours
Voltage input: 3.3V (Typ.)
LED driver: Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 314.7*145.8 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: ILI
Touch Control Interface: (USB+I2C) 10pin
Touch Control Board: Excluded(COF)
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  -4 0~ 85 °C
Storage Temperature  -40 ~ 95 °C
Humidity: 95% at 60 °C RH, no condensing
anti - vibration performance 3.0G(29.4 m/s²)
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

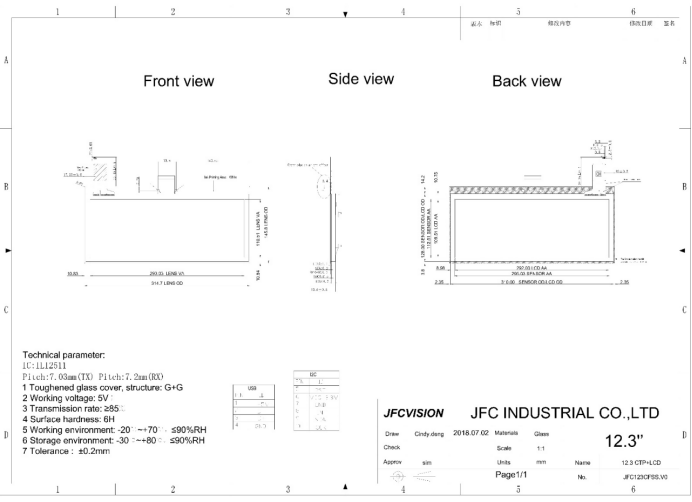

Mechanical Drawings:

mechanical drawings of industrial touch screen display





Customization Services
Item Customization MOQ
Touch panel size, silk print, touch signal connector MOQ is different based upon different sizes
Cover lense hardness, thickness, sizes, shape, color <21.5'', 200pcs
≥21.5'', 100pcs
≥32'', 50pcs
LCD Panel Brightness NO
Bonding air bonding or optical bonding NO
Boards AD board with different signal connectors
PC boards with different systems and functions
for different application
Customized logo added
NO
Cables Signal connector PIN ID
Length
NO



  How do we work

  JFCVision's project customization process, professional outdoor capacitive touch screen display technology solution

small size industrial touch screen display

  Full Optical Bonding &  Air bonding

  JFCVision can produce air bonding and optical bonding and can recommend the most suitable one for you according to your needs.

Full Optical Bonding:

Advantages:

1.Make sure absolute vacuum between LCD panel and Touch Panel,

no ash, no vapor, no vapor condensation caused by outdoor temperature.

2.Improve touch screen panel resolution and brightness in Sunshine

3.Protect the touch screen panel surface from turning yellow caused by sunshine,

anti-shock, anti-shake, to improve display's lifetime in outdoor usages.

4.The structure is very slim, with nice appearance.

Application: touch screen panel

Air bonding:

Advantages:

1.Simple process

2.Shorter delivery date

3.The structure is very slim, with nice appearance.

4.Competitive price for finished product.

Application: For clear, common, and static indoor environment









full optical bonding 12 inch industrial touch screen display

optical bonding 12 inch industrial touch screen display

  Cover Lens Surface Treatment

  JFC can perform AG, AR and AF processing on the surface of the capacitive touch screen glass cover according to customer requirements.

AG(Anti-glare):

Improve display effect:

1.Can reduce the interference of ambient light,

2.improve viewing angle and brightness of the display

 3.Reduce the reflection of the screen

 4.Coating technology making display panels easy on the eye by controlling light reflection

AG Custom Service - 12 inch industrial touch screen display

AR Custom Service - 12 inch industrial touch screen display

AR (Anti-reflection):

1.Reduce the reflection and increase transmission on a surface      compared to the same surface in a blank state.

2.Make the image clear, the color is more beautiful, saturated

  AF(Anti-fingerprint):

1.Surface coated with anti-fingerprint oil

2.The anti-fingerprint effect means that fingerprints on the surface become very slightly.

3.Water, oil, and other liquids are difficult to adhere to the surface.

Application: touch monitor in resturant, outdoor touch display, ATM, POS system, etc.

AF Custom Service - 12 inch industrial touch screen display



  Capacitive Touch Screen Accessories

  18.4-28 inch outdoor touch screen accessories, JFCVision can provide you with a complete solution

Board  Name Accessories Picture Cable  Name Accessories Picture
AD board:



AD Board - 12 inch industrial touch screen display

Inverter Cable

Inverter Cable - 12 inch industrial touch screen display

Inverter:

Inverter - 12 inch industrial touch screen display

LVDS Cable

LVDS Cable - 12 inch industrial touch screen display

Keyboard:

Keyboard - 12 inch industrial touch screen display

Backlight Cable

Backlight Cable - 12 inch industrial touch screen display

 IR:

IR - 12 inch industrial touch screen display

Keyboard Cable

Keyboard Cable - 12 inch industrial touch screen display

   AD board:

    Supply drive solution to the LCD panel

    Interface: HDMI, DVI, VGA, USB, etc.



    Language:

    Chinese, English, French, German, Russian, Spanish, etc.



    Inverte:

    Stabilize the current and voltage

12 inch capacitive touch panel manufacturers

  Application

12 inch capacitive touch screen are mainly used in retail, POS, commercial display, outdoor brightness touch screen and medical, etc

Application - 12 inch industrial touch screen display

  Factory Overview

  JFCVision is factory specialized in capacitive touch panel production development and marketing for more than 10 years

JFCVision 12 inch  industrial touch screen display

  Transport Packaging

  12 inch capacitive touch panel we use EPS plate and wooden box for safe packaging to ensure product safety


Bubble Pack

Bubble Pack - 12 inch capacitive touch panel manufacturers

Carton

Carton - 12 inch capacitive touch panel manufacturers



Waterproofing Film

(On the surface of the
wooden box)

Waterproofing Film - 12 inch capacitive touch panel manufacturers

EPS Plate

EPS Plate - 12 inch capacitive touch panel manufacturers

Wooden Box

Wooden Box - 12 inch capacitive touch panel manufacturers

Fragile Warning Label

Fragile Warning Label - 12 inch capacitive touch panel manufacturers

Packaging process video

12 inch  industrial touch screen display packaging process.

Secure packaging ensures the security of the 12 inch industrial touch screen display



  Warehouse Overview

  JFCVision's long-term stable supply of 10.1-65 inch capacitive touch panel

Warehouse Overview - 12 inch capacitive touch panel manufacturers
