10.1-12.3 inch Capacitive Touch Screens
12.1 inch Touch Screen Panel for Digital Touch Screen KIOSK
Product Specification:
- Model : JFC121CFSS.V0
- Size : 12.1 inch
- Resolution : 1024*768(XGA)
- Brightness : 175cd/m2
- Touch work ability : 10 points
- Application : Commercial Grade Touch Screen Monitor
| Overview | |
| JFCVision 12.1inch LCD Touchscreen Features a Slim Design | |
| Specifications: | |
| TFT LCD Panels | |
| Size: | 12.1inches (diagonal) |
| Resolution: | 1024*768(XGA) |
| Active Area: | 245.76×184.32 mm (H*V) |
| Brightness: | 175cd/m2 (Typ.) |
| View Angle: | 45/45/20/45 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 500:1 |
| Interface: | LVDS (1 ch，6-bit)，20Pin |
| Frequency: | 60Hz |
| Backlight Lifetime: | 10K hours |
| Voltage input: | 3.3V (Typ.) |
| LED driver: | Not included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 260.5*203 (mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | ILI |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| 3M fasten | |

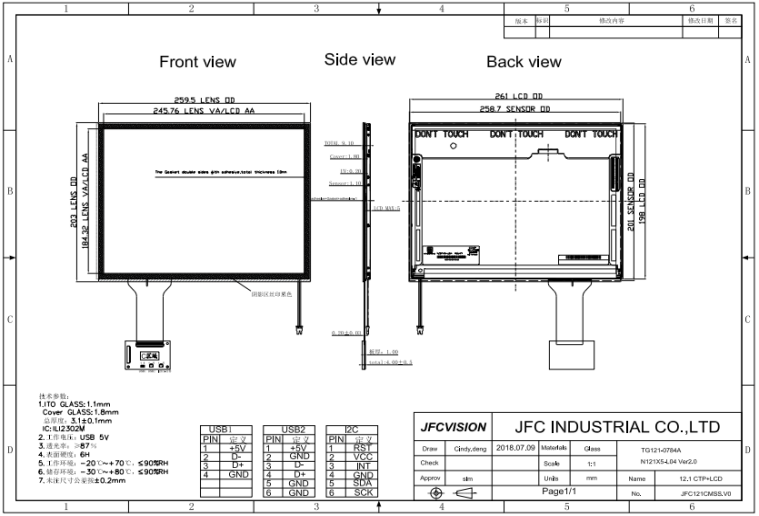

| Mechanical Drawings: | |
|
|
|
