15 inch Capacitive touchscreens - JFC150CMYY.V0
15 inch capacitive touchscreens

15 inch Capacitive touchscreens - JFC150CMYY.V0

Product Specification:
  • Model : JFC150CMYY.V0
  • Size : 15 inch
  • Resolution : 1024*768(GXA)
  • Brightness : 400 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : industrial grade touch screen monitor
Inquiry
  1. Product Details
  2. Download
JFCVision 15nch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 15inches (diagonal)
Resolution: 1024*768(GXA)
Active Area: 304.128*228.096 mm (H*V)
Brightness: 400 cd/m² (Typ.)
View Angle: 88/88/88/88 (Typ.)(CR≥10)
Contrast Ratio: 5000:1
Interface: LVDS (1 ch, 6/8-bit) , 30 pins
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 3.3V (Typ.)
LED driver: included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 323.96*246.4 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EEIT
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  -10 ~ 70 °C
Storage Temperature  -30 ~ 70 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

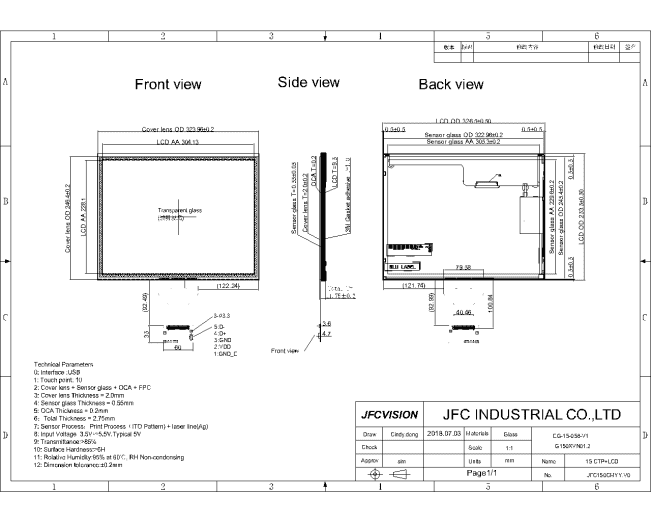

Mechanical Drawings:

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
