4K 32 inch 10 Point Multi Touch Screen For Industrial - JFC320CFSS.V1.2
10 Point Multi Touch Screen

4K 32 inch 10 Point Multi Touch Screen For Industrial - JFC320CFSS.V1.2

Product Specification:
  • Model : JFC320CFSS.V1.2
  • Size : 32 inch
  • Resolution : 3840(RGB)×2160 [UHD]
  • Brightness : 700 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Industrial & Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 31.5 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 31.5 inches (diagonal)
Resolution: 3840(RGB)×2160   [UHD]
Active Area: 698.4*392.85 mm (H*V)
Brightness: 700 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 3000:1
Interface: 51 pins   V-by-One 8 lane
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 12.0V (Typ.)
LED driver: included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 777.12*470.60(mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

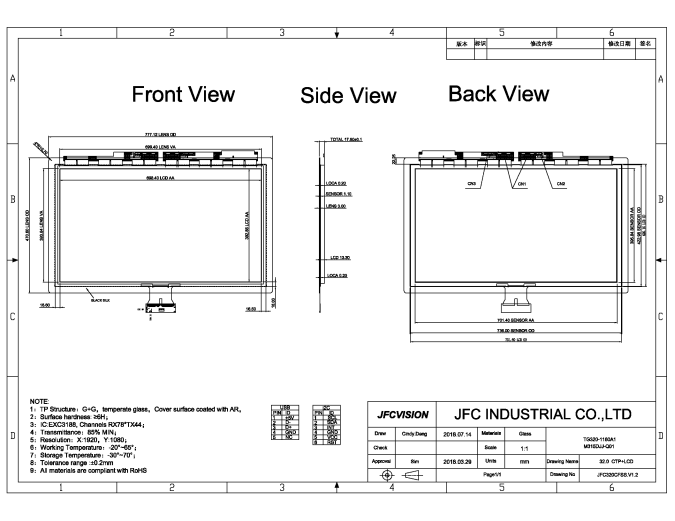

Mechanical Drawings:

Full Optical Bonding 32 inch 10 Point Multi Touch Screen
