4K UHD 500nit 43 inch PCAP Touch Screen - JFC430CFYS.V0
PCAP touch screen
43 inch PCAP touch screen

4K UHD 500nit 43 inch PCAP Touch Screen - JFC430CFYS.V0

Product Specification:
  • Model : JFC430CFYS.V0
  • Size : 43 inch
  • Resolution : 3840(RGB)×2160 [UHD]
  • Brightness : 500 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 43inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 43inches (diagonal)
Resolution: 3840(RGB)×2160   [UHD]
Active Area: 941.184*529.416 mm (H×V)
Brightness: 500 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 3000:1
Interface: V-by-One 8 lane 51pins
Frequency: 60Hz
Backlight Lifetime: 60K hours
Voltage input: 12.0V (Typ.)
LED driver: included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 969.85*566.85(mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
Full Optical Bonding

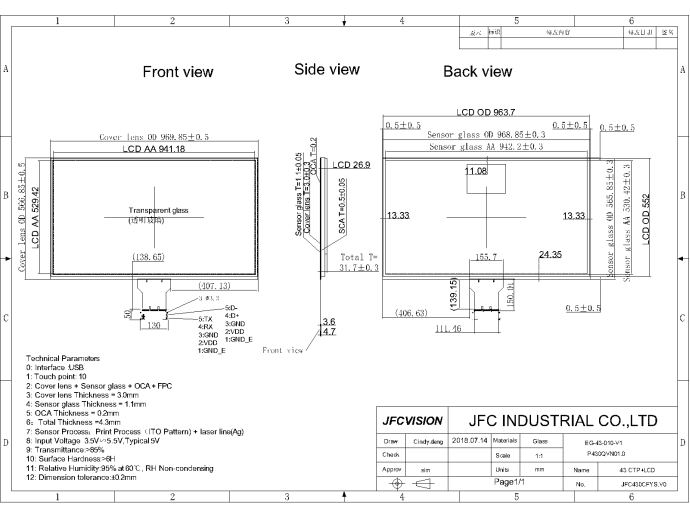

Mechanical Drawings:

Mechanical Drawings of PCAP touch screen

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
