 18.4-28 inch Capacitive Touch Screens

18.4-28 inch Capacitive Touch Screens

3M Capacitive Touch Screen 21.5 inch - JFC215CMSS.V1
3m capacitive touch screen

3M Capacitive Touch Screen 21.5 inch - JFC215CMSS.V1

Product Specification:
  • Model : JFC215CMSS.V1
  • Size : 21.5 inch
  • Resolution : 1920*1080
  • Brightness : 250 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 21.5 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 21.5inches (diagonal)
Resolution: 1920*1080
Active Area: 476.064*267.786 mm (H*V)
Brightness: 250 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 3000:1
Interface: LVDS (2 ch, 8-bit) , 30 pins
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 5.0V (Typ.)
LED driver: Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 532.5*328.6 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: ILI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50°C
Storage Temperature  -20 ~ 60°C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

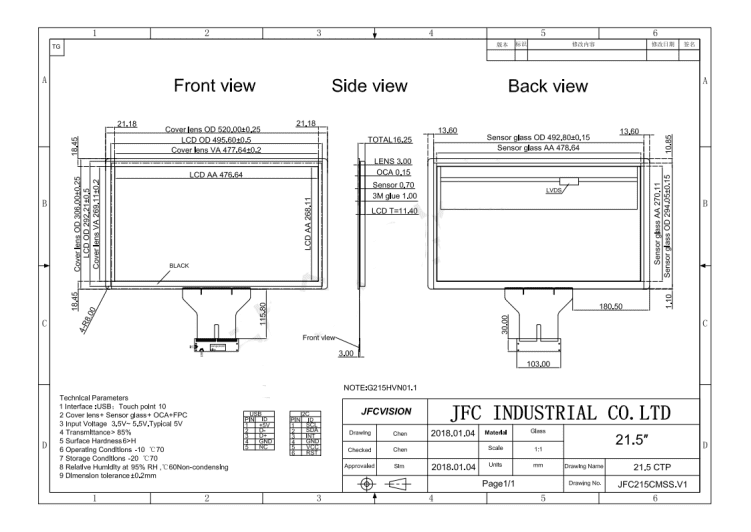

Mechanical Drawings:

3m capacitive touch screen

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
