Product Specification:
  • Model : JFC270CFSS.V0
  • Size : 27 inch
  • Resolution : 1920(RGB)×1080 , FHD
  • Brightness : 300 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 27 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 27 inches (diagonal)
Resolution: 1920(RGB)×1080 , FHD
Active Area: 597.6(W)×336.15(H) mm
Brightness: 300 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 3000:1
Interface: LVDS (30Pin)
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 5.0V (Typ.)
LED driver:  Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 644.4*385.2 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: WEIDA
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

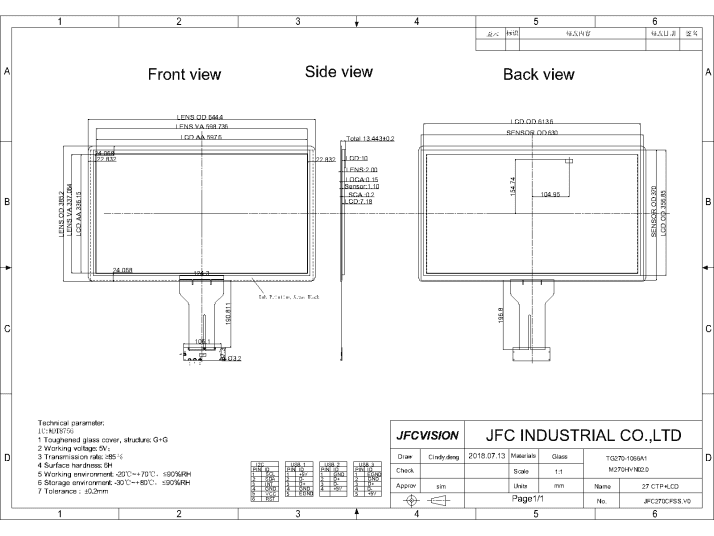

Mechanical Drawings:

China Capacitive TFT Touch Screen Factory

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.
