PCAP Touch
19 inch Projected Capacitive Touch Panel for Touch Screen - JFC190CFYS.V1
Product Specification:
- Model : JFC190CFYS.V1
- Size : 19 inch
| Technical Parameter | |
| Touch Point: | 10 |
| Cover lens + Sensor glass + OCA+FPC | |
| Cover lens Thickness: | 2.0mm |
| Sensor glass Thickness: | 0.7mm |
| OCA Thickness: | 0.2mm |
| Total Thickness: | 2.9mm |
| Sensor Process: | Print Process(ITO Pattern)+laser line(Ag) |
| Input voltage: | 3.5 V～5.5V. Typical 5V |
| Transmittance: | ＞85% |
| Surface hardness: | ＞6H |
| Relative Humidity: | 95% at 60℃，RH Non-condensing |
| Dimension Tolerance: | ±0.2mm |
| Interface: | USB |

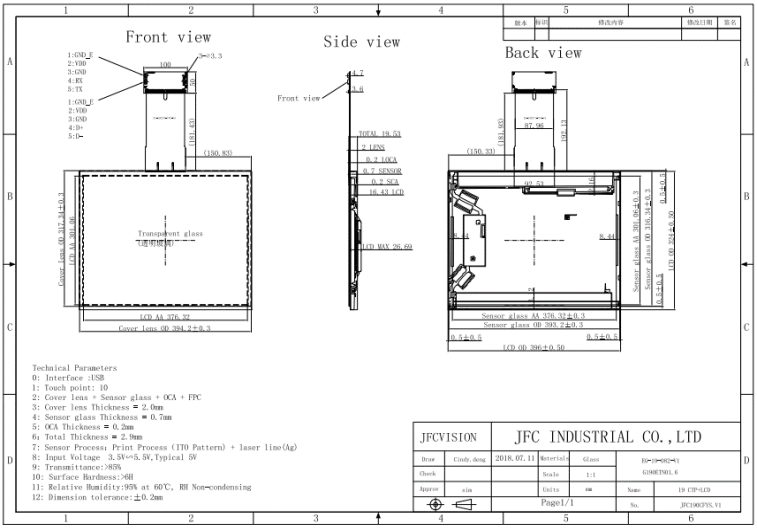

| Mechanical Drawings | |
|
|
|
