LG LCD Panel

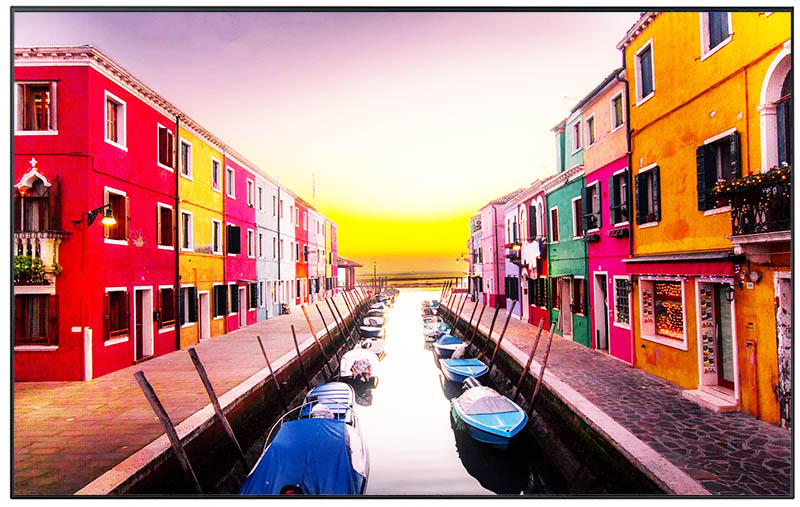

LG 49 inch 2K 450nit - LD490EUE-FHB1 - TFT LCD Module, LCD Module Manufacturer
- Model : LD490EUE-FHB1
- Size : 49 inch
- Resolution : 1920(RGB)×1080 [FHD]
- Brightness : 450 cd/m² (Typ.)
- Application : Digital Signage
Product Description |
The LD490EUE is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system.
The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode.
It has a 48.50 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7Milion colors.
It has been designed to apply the 8-bit 2-port LVDS interface. It is intended to support Commercial display where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.
Specifications | |
49 inch TFT LCD Module, LCD Module Manufacturer - LD490EUE-FHB1 | |
Part Number | LD490EUE-FHB1 |
Size | 49 inch |
Resolution | 1920(RGB)×1080 [FHD] |
Contrast Ratio | 1100:1 (Typ.) (TM) |
Brightness | 450 cd/m² (Typ.) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Frequency | 60Hz |
Lamp Type | WLED , 50K hours , W/O Driver |
Signal Interface | 51 pins LVDS (2 ch, 8-bit) , Connector |
Surface | Antiglare (Haze 1%), Hard coating (3H) |
Storage Temp. | 0 ~ 50 °C |
Operating Temp. | -20 ~ 60 °C |
Weight | 10.8/11.0Kgs (Typ./Max.) |
Original Package | |
Package quantity in one Pallet | 22 pcs |
Pallet size | 1300 mm(W) X 1140 mm(D) X 825 mm(H) |
Customization | ||
Item | Customization | MOQ |
Touch panel | size, silk print, touch signal connector | MOQ is different based upon different sizes |
Cover lense | hardness, thickness, sizes, shape, color | <21.5'', 200pcs ≥21.5'', 100pcs ≥32'', 50pcs |
LCD Panel | Brightness | NO |
Bonding | air bonding or optical bonding | NO |
Boards | AD board with different signal connectors PC boards with different systems and functions for different application Customized logo added |
NO |
Cables | Signal connector PIN ID Length |
NO |
For choose more suitable screen or more information about product please click to contact us!
Who We Are? |
JFCVision are focused upon research, producing and marketing LCD display,
JFC is specialized in full optical bonding, touch LCD Panels, outdoor high-brightness LCD display, and customized solution of LCD displays.
Our Factory - JFCVision is factory specialized in capacitive touch screen, LCD panel, high brightness LCD panel production development and marketing for more than 10 years
Warehouse Overview |
Why Choose Us? |
1. Large Stock System:
We have our own warehouses in Shenzhen, and Hongkong, with comprehensive supplying network of LCD panels & open cells for LG, Samsung, AUO, CMO, and other brands.
2. Comprehensive Panel sources.
We have strong ability and system to seek for our customers the panels which have been end of production for a long time.
3. Professional acknowledgment of LCD panels industry to provide customers with effective advice.
We have been in original LCD panels industry for more than 10 years and know the main brands' LCD panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
4. During the warranty, if panels’ electronic functions problems occur, customers provide the photos to illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s electronic problem, we will take back the panels with problem and replace it with new panels. All freight will be taken by us.
Warranty |
1. All panels’ grade is promised strictly same as original factory’s IIS standard.
2. All brand-new Panels’ electronic functions are guaranteed during warranty period of 1 year beginning with the invoice date.
3. We can do OEM of the High Brightness LCD module as required.
FAQ |
Q1: Any discount?
A1: We will try our best to provide you the competitive price and good service.
Q2: Are you a manufacturer?
A2: Yes, we are a manufacturer of capacitive touch screen.
Q3: What about the warranty of the products?
A3: 12months after delivery. During the warranty, if panel's original factory problems occur, we will take back the panels with problem and replace it with new panels.
All freight will be taken by us.
Q4: What about the payment terms?
A4: T/T, Paypal, or Western Union
Q5: Can you accept OEM or ODM orders?
A5: Yes, we are a touch screen manufacturer, with professional structural,
QC and technical engineers provide OEM or ODM service.
Q6: How to ensure the safety of the screen in transportation?
A6: In order to keep screen in safe, plywood wooden box will be used to pack
the TFT LCD modules.
Q7: If I need customized capacitive touch screen, what can you do for me?
A7: Confirm your requirements (size, resolution, brightness, application, operation
environment), after information confirmed → design drawing → produce sample → sample
test, QC report → prepare instruction manual → ship.
