Touch Monitor
19 inch commercial touch screen monitor 10 point FHD 1000 nit - JFC190HB15TM
- Model : JFC190HB15TM
- Size : 19 inch
- Resolution : 1280（H）×1024（V）
- Brightness : 1500 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Industrial & Commercial Grade Touch Screen Monitor
15.6” High Brightness Touch Open-frame
Product Picture
Product Brief Introduction
JFC190HB15TM commercial capacitive touch monitor with high brightness.
Resolution: 1280*1024.
Brightness: 1500NIT (TFT CENTER /WITHOUT PCPA)
Touch IC: EETI industrial grade, with reliable and stable performance
Bonding Method: Full Optical Bonding
The front tempered glass adopts AR + AG processing technology.
The structural design is compatible with a variety of installation methods, and there are a wide rang of installation and application scenarios for customers.
Main control: NT68676C.
|
Specifications |
|||
|
Product Name |
High brightness touch open-frame |
Contrast Ratio |
1000:1（TYP） |
|
Product Model |
JFC190HB15TM |
Response Time |
10ms（Raising＋Falling） |
|
Screen Size |
19 inch |
Viewing Angle |
85(Left)/85(Right)/80 (Upper)/80(Down) |
|
Active Area |
376.32（H）×301.06（V）mm |
Input Signals |
VGA＋DVI+HDMI |
|
Pixels H×V |
1280（H）×1024（V） |
Operating Temperature & Humidity
|
-25 ~ ＋80℃，10~90 %RH |
|
Pixel Pitch |
0.294×0.294mm |
Storage Temperature & Humidity |
-30 ~ ＋85℃，10~90 %RH |
|
Support Color |
16.7M(RGB 8-Bit) |
Power Supply |
DC12V／5A（Φ=2.1） |
|
Brightness |
1500±50 cd/m2 |
Typical Power Consumption |
＜50W |
|
Touch Screen |
USB A Connector，DC5V Input，10 Dots AR Capacitor Touch Screen |
||
|
MTBF |
IP65+6H |
||
|
Installation Method |

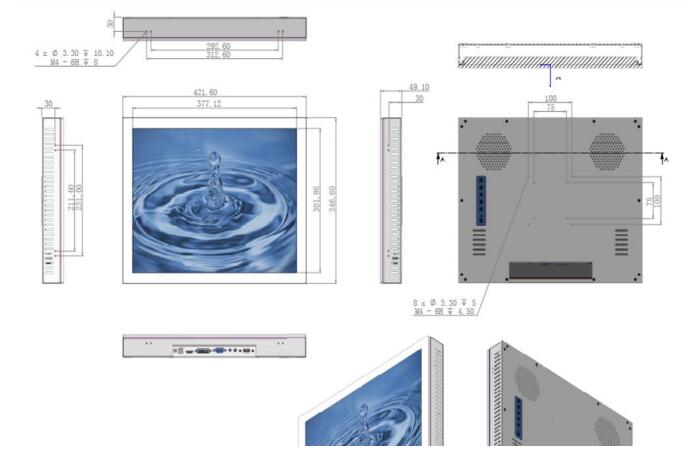

75×75mm，100×100mm VESA；Left+Right+Upper+Down M4 Reserve hole |
||
|
Product Acessories |
USB extension cable: 1200mm; Adapter, with power cable (American Standard): 1800mm |
||
