Samsung LCD Panel
55 inch Outdoor LCD Displays LTI550FN01 For Digital Signage
- Model : LTI550FN01
- Size : 55 inch
- Resolution : 3840*2160
- Brightness : 500nits
- Application : Digitial Signage, PID
| Description of LTI550FN01 |
| Stock Quantity | 1200 pcs |
| Warranty | 18 months |
| Quality | A grade Samsung original & brand new,factory-seal package |
| Delivery Period | 1 Day |
| MOQ | 1 pc |
|
DESCRIPTION
LTI550FN01 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) asswitching components.
This model is composed of a TFT LCD panel, adrivercircuit, and a backlight unit.
This 55 inch model has a resolution of 3840x2160 pixels (16:9) can display up to 16.7 Million colors with the wide viewing angle of 89 or higher in all directions. |
|
FEATURES
RoHS compliance (Pb-free) |
|
|
APPLICATIONS
Public Information Display(PID) (If there is the intent to use this product for other purpose, please contact JFCVision.) |
| Panel Model | LTI550FN01 |
| Size | 55 inch |
| Resolution | 3840(RGB) ×2160, UHD |
| Brightness | 500 cd/m² (Typ.) |
| Aspect Ratio | 16:10 (W: H) |
| Surface | Antiglare (Haze 25%), Hard coating (2H) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Response Time | 6 (Typ.)(G to G) |
| Signal Interface | V-by-One 16 lane, 92 pins, Connector |
| Frequency | 120Hz |
| Lamp Type | WLED, 50K hours, With LED Driver |
| Application | Digital Signage, PID |
| Carton | 20 pcs/carton |
| Size: 1440×1120×769 mm(without pallet plastic) |
|
|
|
|
|
|
4K 120Hz UHD (3840*2160) |
|
High Definition, Exquisite Picture, Ultra HD Resolution 3840*2160 |
120Hz Ultra High Refresh Rate,Clear Capture, More Pictures More Joys
|
|
Contrast：4000:1 S-RGB |
|
Clear And Conspicuous Image, Excessively Natural Details And Widely Color Gamut, Vivid Picture And Bright Color
|
High Contrast Rtio With Clearly Shadow Picture |
|

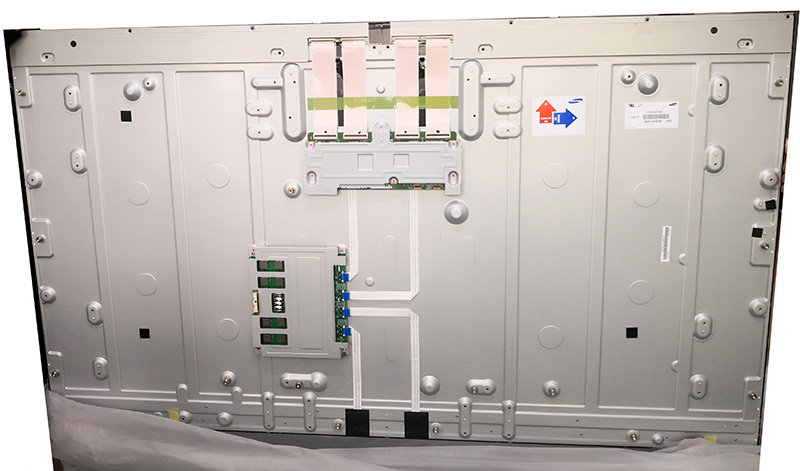

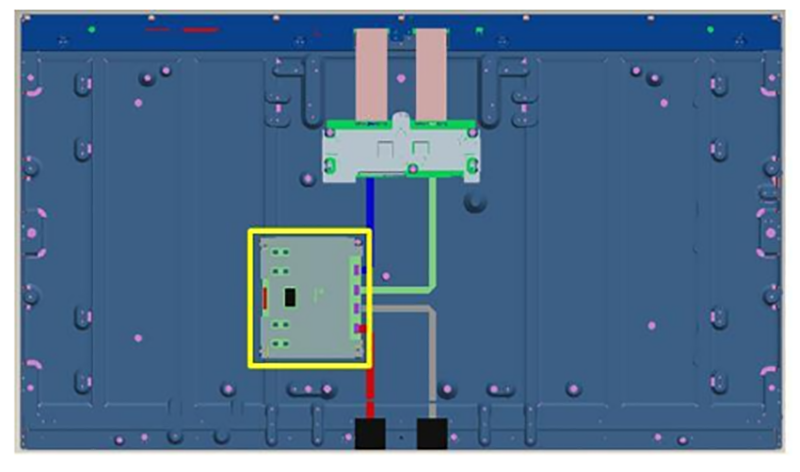

Structure of LTI550FN01 |

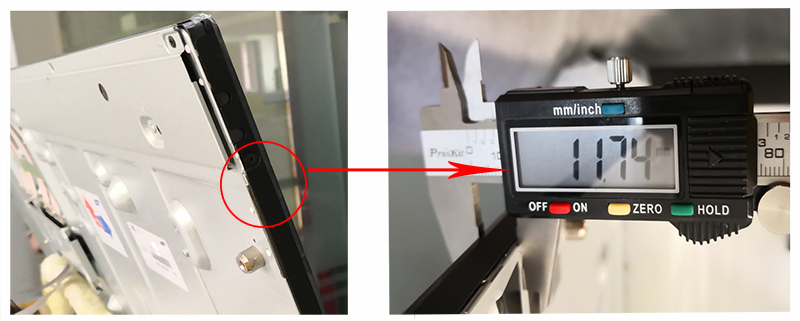

Ultra-thin screen：The thickness of the side of the LCD panel
Multi screw holes, multi selective for accessories and installation method
|
Customized Solution (SKD) |
|
2K Program |
||
|
|
|
|
| 2K AD board | Converter | Power board |
|
4K Program |
||
|
|
|
|
| 4K AD board | 4K Converter | Power board |
