LCD Video Wall
Samsung 65 inch 4K 4.1mm LCD Video Wall Panels - LTI650FN01
- Model : LTI650FN01
- Size : 65 inch
- Resolution : 3840*2160
- Brightness : 700 cd/m² (Typ.)
- Application : LCD Video Wall
GENERAL DESCRIPTION
DESCRIPTION
LTI650FN01-O is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT(Thin FilmTransistor) as switching components.
This LCD video wall panels model is composed of a TFT LCD panel, a driver circuit, and a back-light unit.
This 65.0" LCD video wall panels model has a resolution of 3840 x 2160 pixels (16:9) can display up to 16.7 million colorswith the wide viewing angle of 89* or higher in all directions.
FEATURES

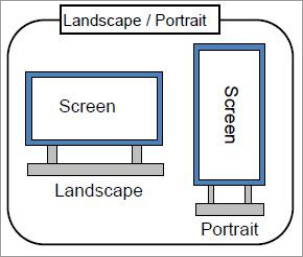

| RoHS compliance(Pb-free) UHD(3840 x 2160) resolution(16:9) SVA(Super Vertical Align) mode High Tni(85℃) Liquid Crystal High speed response High contrast ratio, High aperture ratio with the wide color gamut Wide viewing angle (178°) Landscape / Portrait type compatible V-by-One Interface (8 Lanes 3840 x 2160 60Hz) DE(Data Enable) mode Direct LED Backlight Low power consumption Black Mura Improvement Technology |
|
APPLICATIONS
Public Information Display (PID)
If there is the intent to use this LCD video wall panels for other purpose, please contact us.
| Specifications | ||||
| Part Number: | LTI650FN01 | Lamp Type: | SVA, Normally Black, Transmissive | |
| Size: | 65 inch | Signal Interface: | 51 pins V-by-One 8 lane , Connector | |
| Resolution: | 3840(RGB)×2160 [FHD] | Surface: | Antiglare (Haze 25%), Hard coating (2H) | |
| Videowall Seam | 4.1 mm (active to active seam) | Storage Temp.: | 0 ~ 50 °C | |
| Brightness: | 700 cd/m² (Typ.) | Operating Temp.: | -20 ~ 60 °C | |
| Viewing Angle: | 89/89/89/89 | Weight: | 16.5/18.0Kgs (Typ./Max.) | |
| Frequency: | 60Hz | Backlight | WLED , 50K hours , With LED Driver | |
| Original Package | ||||
| Total Weight | Approximately 190.2kg [With Pallet] | |||
| Acceptance number of piling | Move - 1 Pallet, Stock - 2 PalletsNote | |||
| Carton size |
1090mm(W), 1610mm(L), 972mm(H) [Without Pallet] 1112mm(W), 1630mm(L), 1106mm(H) [With Pallet] |
|||
| Customization | ||
| Item | Customization | MOQ |
| Touch panel | size, silk print, touch signal connector | MOQ is different based upon different sizes |
| Cover lense | hardness, thickness, sizes, shape, color | <21.5'', 200pcs ≥21.5'', 100pcs ≥32'', 50pcs |
| LCD Panel | Brightness | NO |
| Bonding | air bonding or optical bonding | NO |
| Boards | AD board with different signal connectors PC boards with different systems and functions for different application Customized logo added |
NO |
| Cables | Signal connector PIN ID Length |
NO |
