10.4 inch 500nit Full Optical Bonding EEIT Touch IC - PCAP Touch - JFC104CFYS.V0
- Model : JFC104CFYS.V0
- Size : 10.4 inch
- Resolution : 1024*768
- Brightness : 500 cd/m2 (Typ.)
- Application : Industrial and Commercial Display
| JFCVision 10.4inch LCD Touchscreen Features a Slim Design | |
| TFT LCD Panels | |
| Size: | 10.4inches (diagonal) |
| Resolution: | 1024*768 |
| Active Area: | 210.4*157.8 mm (H*V) |
| Brightness: | 500 cd/m2 (Typ.) |
| View Angle: | 88/88/88/88 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 1000:1 |
| Interface: | LVDS (1 ch,6/8-bit),30pin |
| Frequency: | 60Hz |
| Backlight Lifetime: | 50K hours |
| Voltage input: | 3.3V (Typ.) |
| LED driver: | included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 226.4*176.12(mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | EEIT |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | -30 ~ 70 °C |
| Storage Temperature | -30 ~ 80°C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| Full Optical Bonding | |

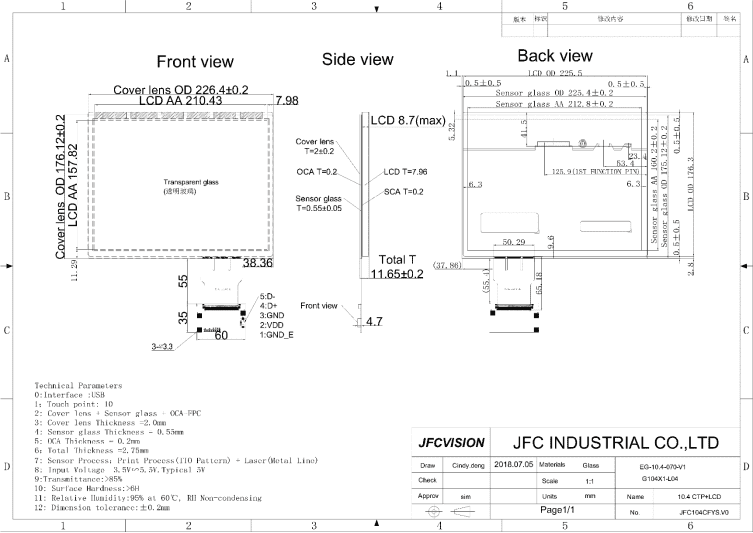

| Mechanical Drawings: | |
|
|
|
| Customization Services |
| Item | Customization | MOQ |
| Touch panel | size, silk print, touch signal connector | MOQ is different based upon different sizes |
| Cover lense | hardness, thickness, sizes, shape, color | <21.5'', 200pcs ≥21.5'', 100pcs ≥32'', 50pcs |
| LCD Panel | Brightness | NO |
| Bonding | air bonding or optical bonding | NO |
| Boards | AD board with different signal connectors PC boards with different systems and functions for different application Customized logo added |
NO |
| Cables | Signal connector PIN ID Length |
NO |
|
How do we work JFCVision's project customization process, professional outdoor capacitive touch screen display technology solution |
|
Full Optical Bonding & Air bonding JFCVision can produce air bonding and optical bonding and can recommend the most suitable one for you according to your needs. |
|
Full Optical Bonding: Advantages: 1.Make sure absolute vacuum between LCD panel and Touch Panel, no ash, no vapor, no vapor condensation caused by outdoor temperature. 2.Improve capacitive touch screen panel resolution and brightness in Sunshine 3.Protect the capacitive touch screen panel surface from turning yellow caused by sunshine, anti-shock, anti-shake, to improve display's lifetime in outdoor usages. 4.The structure is very slim, with nice appearance. Application: capacitive touch screen panel |
Air bonding: Advantages: 1.Simple process 2.Shorter delivery date 3.The structure is very slim, with nice appearance. 4.Competitive price for finished product. Application: For clear, common, and static indoor environment
|
 |
|
|
Cover Lens Surface Treatment JFC can perform AG, AR and AF processing on the surface of the capacitive touch screen glass cover according to customer requirements. |
|
AG(Anti-glare): Improve display effect: 1.Can reduce the interference of ambient light, 2.improve viewing angle and brightness of the display 3.Reduce the reflection of the screen 4.Coating technology making display panels easy on the eye by controlling light reflection |
|
|
|
AR (Anti-reflection): 1.Reduce the reflection and increase transmission on a surface compared to the same surface in a blank state. 2.Make the image clear, the color is more beautiful, saturated |
|
AF(Anti-fingerprint): 1.Surface coated with anti-fingerprint oil 2.The anti-fingerprint effect means that fingerprints on the surface become very slightly. 3.Water, oil, and other liquids are difficult to adhere to the surface. Application: touch monitor in resturant, outdoor touch display, ATM, POS system, etc. |
|
|
