32-65 inch Capacitive Touch Screens
4K UHD 500nit 40 inch 10 Point Touch Screen - JFC400CFSS.V0
Product Specification:
- Model : JFC400CFSS.V0
- Size : 40 inch
- Resolution : 3840(RGB)×2160 , UHD
- Brightness : 500 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Commercial Grade Touch Screen Monitor
| JFCVision 40 inch LCD Touchscreen Features a Slim Design | |
| TFT LCD Panels | |
| Size: | 40 inches (diagonal) |
| Resolution: | 3840(RGB)×2160 , UHD |
| Active Area: | 878.112 × 485.352 mm (H×V) |
| Brightness: | 500 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 4800:1 |
| Interface: | V-by-One 8 lane 51 pins |
| Frequency: | 120Hz |
| Backlight Lifetime: | 30K hours |
| Voltage input: | 12.0V (Typ.) |
| LED driver: | Not included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 940*550mm |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | / |
| Touch Control Interface: | COB |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| Full Optical Bonding | |

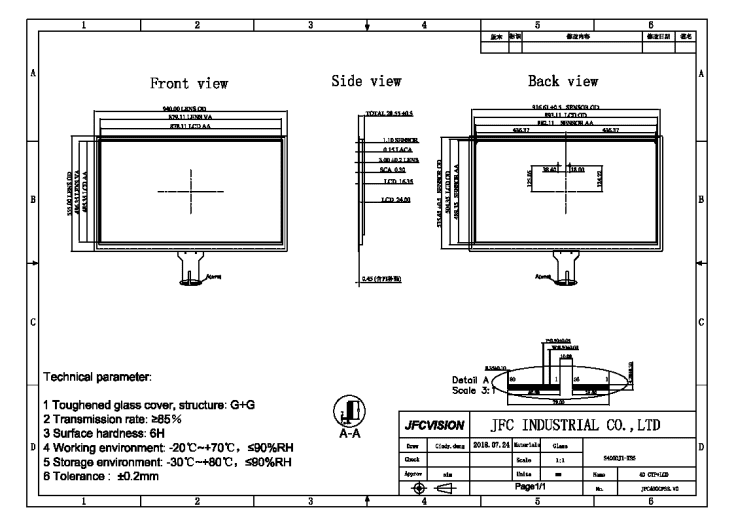

| Mechanical Drawings: | |
|
|
|
| Customization Services | |
| 1). Cover lens is tempered glass, the size and hardness can be customized. | |
| 2). Black silk area size and icons can be customized. | |
