32-65 inch Capacitive Touch Screens

32-65 inch Capacitive Touch Screens

43 inch Interactive Touch Panel Supplier - JFC430CMSS.V0
Interactive Touch Panel
Interactive Touch Panel Supplier

43 inch Interactive Touch Panel Supplier - JFC430CMSS.V0

Product Specification:
  • Model : JFC430CMSS.V0
  • Size : 43 inch
  • Resolution : 1920(RGB)×1080 [FHD]
  • Brightness : 450 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 43 inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 43 inches (diagonal)
Resolution: 1920(RGB)×1080   [FHD]
Active Area: 941.184(W)×529.416(H) mm
Brightness: 450 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1100:1 (Typ.)
Interface: LVDS (2 ch, 8-bit) , 51 pins
Frequency: 60Hz
Backlight Lifetime: 50K hours
Voltage input: 12.0V (Typ.)
LED driver: Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 969.85*566.85(mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature  0 ~ 50 °C
Storage Temperature  -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
3M fasten

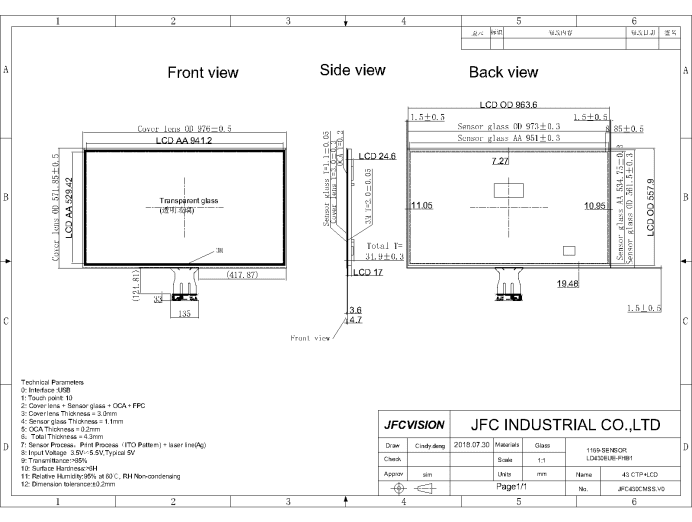

Mechanical Drawings:

43 inch Interactive Touch Panel Supplier

Customization Services
1). Cover lens is tempered glass, the size and hardness can be customized.
2). Black silk area size and icons can be customized.

large touch screen producetion process

large touch screen production



43 inch Interactive Touch Panel for commercial display

Interactive Touch Panel for commercial display



43 inch Interactive Touch Panel manufacturers

JFCVISION's factory
