32-65 inch Capacitive Touch Screens
55 inch Touch Screen - JFC550CMYY.V0
Product Specification:
- Model : JFC550CMYY.V0
- Size : 55 inch
- Resolution : 1920*1080
- Brightness : 450 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Commercial Grade Touch Screen Monitor
| JFCVision 55inch LCD Touchscreen Features a Slim Design | |
| TFT LCD Panels | |
| Size: | 55inches (diagonal) |
| Resolution: | 1920*1080 |
| Active Area: | 1209.6*680.4 mm (H*V) |
| Brightness: | 450 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 1100:1 |
| Interface: | LVDS (2 ch，8-bit)，51pin |
| Frequency: | 60Hz |
| Backlight Lifetime: | 50K hours |
| Voltage input: | 12.0V (Typ.) |
| LED driver: | Not included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 1249.35*725.59 (mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | EEIT |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | 0 ~50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| 3M Fasten | |

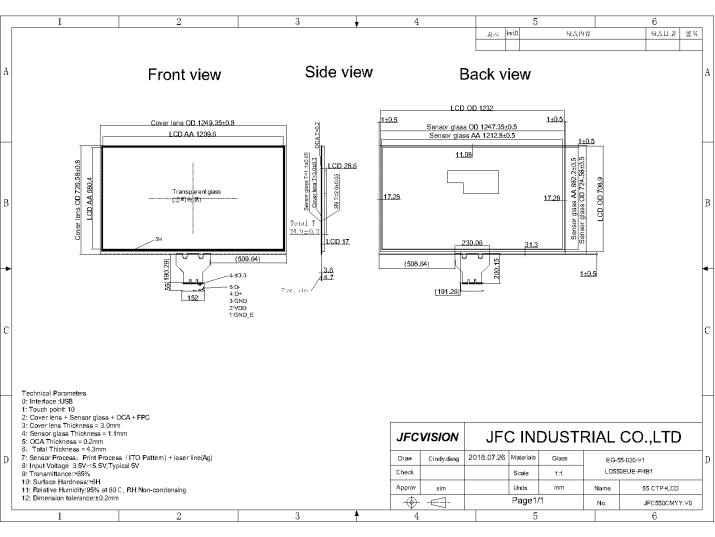

| Mechanical Drawings: | |
|
|
|
| Customization Services | |
| 1). Cover lens is tempered glass, the size and hardness can be customized. | |
| 2). Black silk area size and icons can be customized. | |
