18.4-28 inch Capacitive Touch Screens
27 inch 4K air bonding touch screen manufacturers - JFC270CMSS.V0
- Model : JFC270CMSS.V0
- Size : 27 inch
- Resolution : 3840(RGB)×2160 [UHD]
- Brightness : 350 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Commercial Grade Touch Screen Monitor
| Overview | |
| JFCVision 270 inch LCD Touchscreen Features a Slim Design | |
| Specifications: | |
| TFT LCD Panels | |
| Size: | 27 inches (diagonal) |
| Resolution: | 3840(RGB)×2160 [UHD] |
| Active Area: | 596.74 × 335.66 mm (H×V) |
| Brightness: | 350 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 1300:1 |
| Interface: | eDP (4 Lanes) 40 pins |
| Frequency: | 60Hz |
| Backlight Lifetime: | 30K hours |
| Voltage input: | 10.0V (Typ.) |
| LED driver: | Not included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 520*306 (mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | WEIDA |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| 3M fasten | |

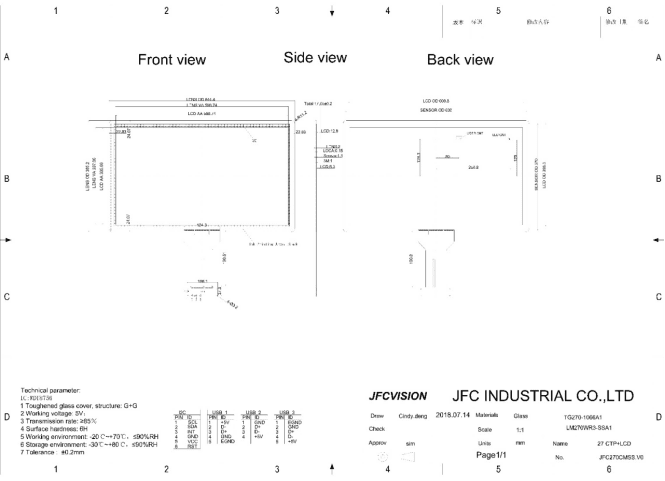

| Mechanical Drawings: | |
|
|
|
| Customization Services | |
| Item | Customization | MOQ |
| Touch panel | size, silk print, touch signal connector | MOQ is different based upon different sizes |
| Cover lense | hardness, thickness, sizes, shape, color | <21.5'', 200pcs ≥21.5'', 100pcs ≥32'', 50pcs |
| LCD Panel | Brightness | NO |
| Bonding | air bonding or optical bonding | NO |
| Boards | AD board with different signal connectors PC boards with different systems and functions for different application Customized logo added |
NO |
| Cables | Signal connector PIN ID Length |
NO |
|
How do we work JFCVision's project customization process, professional capacitive touch screen display technology solution |
|
Full Optical Bonding & Air bonding JFCVision can produce air bonding and optical bonding and can recommend the most suitable one for you according to your needs. |
|
Full Optical Bonding: Advantages: 1.Make sure absolute vacuum between LCD panel and Touch Panel, no ash, no vapor, no vapor condensation caused by outdoor temperature. 2.Improve capacitive touch screen resolution and brightness in Sunshine 3.Protect the capacitive touch screen surface from turning yellow caused by sunshine, anti-shock, anti-shake, to improve display's lifetime in outdoor usages. 4.The structure is very slim, with nice appearance. Application: Outdoor touch screen |
Air bonding: Advantages: 1.Simple process 2.Shorter delivery date 3.The structure is very slim, with nice appearance. 4.Competitive price for finished product. Application: For clear, common, and static indoor environment
|
 |
|
|
Cover Lens Surface Treatment JFC can perform AG, AR and AF processing on the surface of the capacitive touch screen glass cover according to customer requirements. |
|
AG(Anti-glare): Improve display effect: 1.Can reduce the interference of ambient light, 2.improve viewing angle and brightness of the display 3.Reduce the reflection of the screen 4.Coating technology making display panels easy on the eye by controlling light reflection |
|
|
|
AR (Anti-reflection): 1.Reduce the reflection and increase transmission on a surface compared to the same surface in a blank state. 2.Make the image clear, the color is more beautiful, saturated |
|
AF(Anti-fingerprint): 1.Surface coated with anti-fingerprint oil 2.The anti-fingerprint effect means that fingerprints on the surface become very slightly. 3.Water, oil, and other liquids are difficult to adhere to the surface. Application: touch monitor in resturant, outdoor touch display, ATM, POS system, etc. |
|
|
Capacitive Touch Screen Accessories 18.4-28 inch capacitive touch screen accessories, JFCVision can provide you with a complete solution |
| Board Name | Accessories Picture | Cable Name | Accessories Picture |
| AD board: |
|
Inverter Cable |
|
| Inverter: |
|
LVDS Cable |
|
| Keyboard: |
|
Backlight Cable |
|
| IR: |
|
Keyboard Cable |
|
|
AD board： Supply drive solution to the LCD panel Interface: HDMI, DVI, VGA, USB, etc.
Language: Chinese, English, French, German, Russian, Spanish, etc.
Inverte: Stabilize the current and voltage |
|
|
Application 27 inch 3M touch screen are mainly used in retail, POS, commercial display, outdoor brightness touch screen and medical, etc |
|
JFCVision is touch screen manufacturers specialized in touch screen production development and marketing for more than 10 years |
|
Transport Packaging 27 inch 3M touch screen we use EPS plate and wooden box for safe packaging to ensure product safety |
Bubble Pack |
|
Carton |
|
Waterproofing Film (On the surface of the |
|
| EPS Plate |
|
Wooden Box |
|
Fragile Warning Label |
|
|
Packaging process video 27 inch air bonding 3M touch screen packaging process. Secure packaging ensures the security of the 27 inch air bonding 3M touch screen |
|
Warehouse Overview JFCVision's long-term stable supply of 10.1-65 inch capacitive touch screen |
