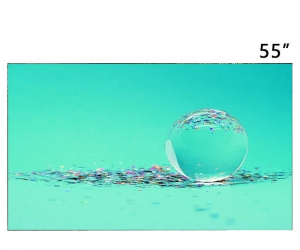

55 inch OLED Screen Display For LG Display - LW550PUL-HLA3
- Model : LW550PUL-HLA3
- Size : 55 inch
- Resolution : 1920(RGB)×1080 [FHD]
- Brightness : 400 cd/m² (Typ.)
- Color gamut : -
- Touch work ability : -
- Application : -
Specifications | |
Panel Model | LW550PUL-HLA3 |
Panel Size | 55 inch |
Resolution | 1920(3) ×1080, FHD |
Display Area | 1209.6(W)×680.4(H) mm |
Outline Size | 1217.48(W)×693.74(H) mm |
Brightness | 400 cd/m² (Typ.) |
Viewing Angle | 60/60/60/60 (Min.) |
Best View on | Symmetry |
Display Colors | 1.07B 89% NTSC |
Frequency | 120Hz |
Panel Weight | 2.40Kgs (Typ.) |
Signal Interface | V-by-One 8 lane, 65 pins, Connector |
Input Voltage | 12.0/24.0V (Typ.)(VDD/EVDD) |
Environment | Operating Temp.: 0 ~ 45 °C ; Storage Temp.: -20 ~ 60 °C |
Panel Type | AM-OLED, OLED |
Pixel Format | RGBW Vertical Stripe |
Surface | Hard coating (2H), Reflection 1.2% (Typ.) |
Contrast Ratio | 150000:1 (Typ.) (TM) |
Response Time | 1 (Typ.)(G to G); 8 (Typ.)(MPRT) |
Lamp Type | self, 30K hours |
Touch Screen | Without |
Application | TV Sets |
