Touch Monitor
27 inch Touch Screen Monitor - JFC270M.V0
Product Specification:
- Model : JFC270M.V0
- Size : 27 inch
- Resolution : 1920(RGB)×1080 [FHD]
- Brightness : 300 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Commercial Grade Touch Screen Monitor
| JFCVison 27 inch Touch Screen Monitor | |
| TFT LCD Panels | |
| Size: | 27 inches (diagonal) |
| Resolution: | 1920*1080 |
| Active Area: | 597.6(H) × 336.15(V)mm |
| Brightness: | 300 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Backlight Lifetime: | 30K hours |
| Touch Specifications | |
| Touch Type: | Capacitive Touch |
| Multi Touch Points: | 10 points |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch Control Interface: | USB |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 6H |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Environment | |
| Operation Temperature | -40 ~ 55 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 10~90% 40ºC |
| Adhesive types of LCD Panel and Touch | |
| Full Optical Bonding |

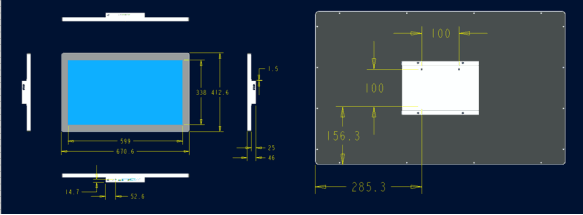

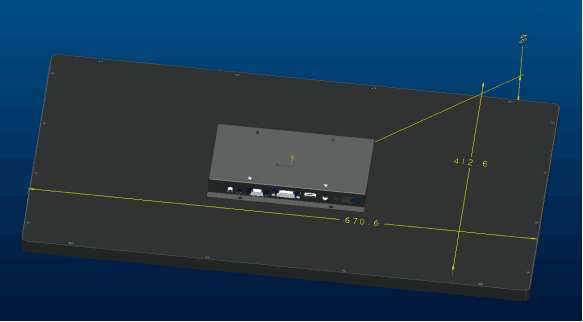

| Mechanical Drawings: | |
|
|
| Stablity Test includes: | |
| 1). High / Low Temperature Storage Test | |
| 2). High / Low Temperature Operation Test | |
| 3). High Humidity Operation and StorageTest | |
| 4). Thermal Shock Test (non-operating) |
