Touch Monitor
4K Capacitive Touch Screen Monitor - JFC238TM.V1
Product Specification:
- Model : JFC238TM.V1
- Size : 23.8 inch
- Resolution : 3840(RGB)×2160 [UHD]
- Brightness : 350 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Commercial Grade Touch Screen Monitor
| JFCVision 23.8 inch Capacitive Touch Screen Monitor | |
| TFT LCD Panels | |
| Size: | 23.8 inches (diagonal) |
| Resolution: | 3840*2160 |
| Active Area: | 527.04(H) × 296.46(V)mm |
| Brightness: | 350 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Backlight Lifetime: | 30K hours |
| Touch Specifications | |
| Touch Type: | Capacitive Touch |
| Multi Touch Points: | 10 points |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch Control Interface: | USB |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 6H |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Environment | |
| Operation Temperature | -40 ~ 55 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 10~90% 40ºC |
| Adhesive types of LCD Panel and Touch | |
| Full Optical Bonding |

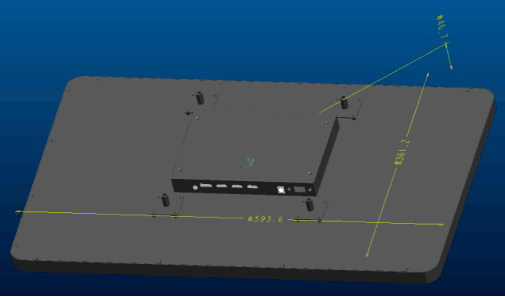

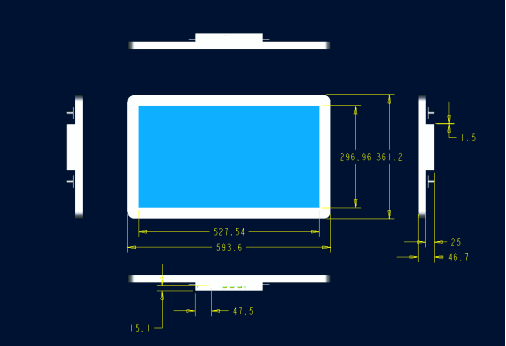

| Mechanical Drawings: | |
|
|
| Stablity Test includes: | |
| 1). High / Low Temperature Storage Test | |
| 2). High / Low Temperature Operation Test | |
| 3). High Humidity Operation and StorageTest | |
| 4). Thermal Shock Test (non-operating) |
| Warranty: | |
| 1). Warranty Period: 2 years from the date of shipping. | |
| 2). Warranty Exclusions: | |
| * Failure to adhere to the handling, storage, operating, assembly or other procedures and | |
| * Parameters outlined in this delivery specification. | |
| * Accidental or purposeful abuse, neglect or acts of nature. | |
| * Breakage or physical scratches to the touch screen. | |
|
* Other factors beyond the control of JFCVision |
