18.4-28 inch Capacitive Touch Screens
28 inch Full Optical Bonding Industrial LCD Bar Touch Screen Display
Product Specification:
- Model : JFC280CMSS.V1
- Size : 28 inch
- Resolution : 1920(RGB)×360
- Brightness : 700 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Industrial & Commercial Grade Touch Screen Monitor
| Overview | |
| JFCVision 28 inch LCD Touchscreen Features a Slim Design | |
| Specifications: | |
| TFT LCD Panels | |
| Size: | 28 inches (diagonal) |
| Resolution: | 1920(RGB)×360 |
| Active Area: | 699.84 × 131.22 mm (H×V) |
| Brightness: | 700 cd/m2 (Typ.) |
| View Angle: | 89/89/89/89 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 1200:1 |
| Interface: | LVDS (1 ch, 8-bit) 51 pins |
| Frequency: | 60Hz |
| Backlight Lifetime: | 30K hours |
| Voltage input: | 12.0V (Typ.) |
| LED driver: | Not included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 732.00*165.00 （mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | EETI |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| 3M fasten | |

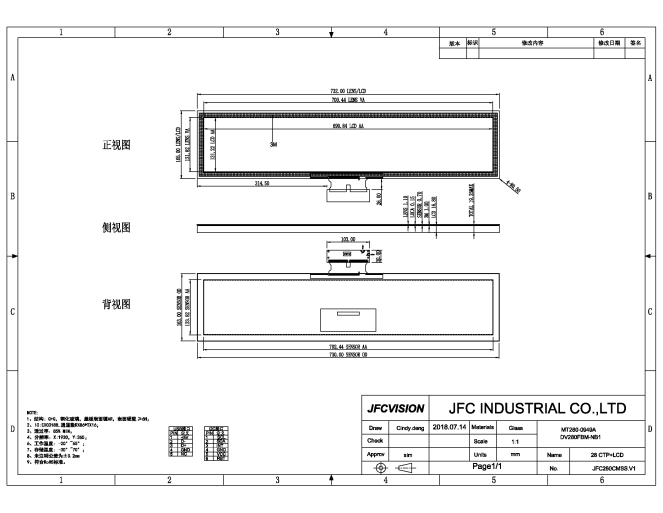

| Mechanical Drawings: | |
|
|
|
