Industrial LCD Touch Screen for Industrial Touch Monitor - JFC238CFYS.V0
 Industrial LCD Touch Screen

Industrial LCD Touch Screen for Industrial Touch Monitor - JFC238CFYS.V0

Product Specification:
  • Model : JFC238CFYS.V0
  • Size : 23.8 inch
  • Resolution : 1920(RGB)×1080 [FHD]
  • Brightness : 250 cd/m2 (Typ.)
  • Touch work ability : 10 points
  • Application : Commercial Grade Touch Screen Monitor
Inquiry
  1. Product Details
  2. Download
 Overview
JFCVision 23.8  inch LCD Touchscreen Features a Slim Design
Specifications:
TFT LCD Panels
Size: 23.8 inches (diagonal)
Resolution: 1920(RGB)×1080   [FHD]
Active Area: 527.04*296.46 mm (H*V)
Brightness: 250 cd/m2 (Typ.)
View Angle: 89/89/89/89 (Typ.)(L/R/U/D)
Contrast Ratio: 1000:1
Interface: LVDS (30Pin)
Frequency: 60Hz
Backlight Lifetime: 30K hours
Voltage input: 5.0V (Typ.)
LED driver:  Not included
Touch Specifications
Touch Type: Capacitive Touch, with 2-glass solution technology (2GS)
Multi Touch Points:  10 points
Outline Dimension 549.24*317.87 (mm)
Active Touch Area: Same as LCD Panel's active area
Touch IC: EETI
Touch Control Interface: USB 2.0
Touch Control Board: Included
Systems Supportable: Android, Windows, Linux
Tempered Glass Surface Hardness 7H (Typ.) (Customized)
Transmittance: > 85 °C
Touch Supportable: Finger, Glove or Passive Pen Input
Input Voltage 3.5V~5.5V, Typ. 5V
Environment
Operation Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Humidity: 95% at 60 °C RH, no condensing
Adhesive types of LCD Panel and Touch
 Full Optical Bonding

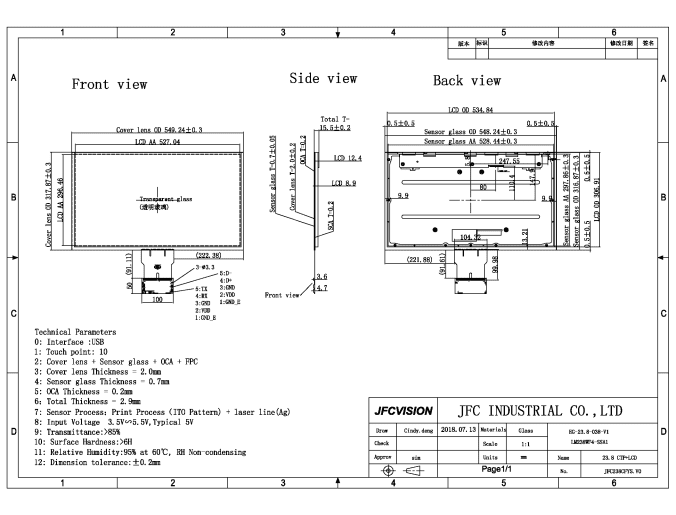

Mechanical Drawings:

Mechanical Drawings of Industrial LCD Touch Screen

Customization Services
Item Customization MOQ
Touch panel size, silk print, touch signal connector MOQ is different based upon different sizes
Cover lense hardness, thickness, sizes, shape, color <21.5'', 200pcs
≥21.5'', 100pcs
≥32'', 50pcs
LCD Panel Brightness NO
Bonding air bonding or optical bonding NO
Boards AD board with different signal connectors
PC boards with different systems and functions
for different application
Customized logo added
NO
Cables Signal connector PIN ID
Length
NO



  How do we work

  JFCVision's project customization process, professional industrial LCD touch screen display technology solution

Professional Industrial LCD Touch Screen Display Technology Solution

  Full Optical Bonding & Air bonding

  JFCVision can produce air bonding and optical bonding and can recommend the most suitable one for you according to your needs.

Full Optical Bonding:

Advantages:

1.Make sure absolute vacuum between LCD panel and Touch Panel,

no ash, no vapor, no vapor condensation caused by outdoor temperature.

2.Improve industrial LCD touch screen resolution and brightness in Sunshine

3.Protect the industrial LCD touch screen surface from turning yellow caused by sunshine,

anti-shock, anti-shake, to improve display's lifetime in outdoor usages.

4.The structure is very slim, with nice appearance.

Application: Outdoor industrial LCD touch screen

Air bonding:

Advantages:

1.Simple process

2.Shorter delivery date

3.The structure is very slim, with nice appearance.

4.Competitive price for finished product.

Application: For clear, common, and static indoor environment









23.8 Full Optical Bonding LCD Touch Screen

Full Optical Bonding for Industrial Touch Monitor

  Cover Lens Surface Treatment

  JFC can perform AG, AR and AF processing on the surface of the touch screen glass cover according to customer requirements.

AG(Anti-glare):

Improve display effect:

1.Can reduce the interference of ambient light,

2.improve viewing angle and brightness of the display

 3.Reduce the reflection of the screen

 4.Coating technology making display panels easy on the eye by controlling light reflection

AG Custom Service - Industrial Touch Monitor

AR Custom Service - Industrial Touch Monitor

AR (Anti-reflection):

1.Reduce the reflection and increase transmission on a surface      compared to the same surface in a blank state.

2.Make the image clear, the color is more beautiful, saturated

  AF(Anti-fingerprint):

1.Surface coated with anti-fingerprint oil

2.The anti-fingerprint effect means that fingerprints on the surface become very slightly.

3.Water, oil, and other liquids are difficult to adhere to the surface.

Application: touch monitor in resturant, outdoor touch display, ATM, POS system, etc.

AF Custom Service - Industrial Touch Monitor



  Capacitive Touch Screen Accessories

  18.4-28 inch Capacitive touch screen accessories, JFCVision can provide you with a complete solution

Board  Name Accessories Picture Cable  Name Accessories Picture
AD board:



AD Board for Industrial Touch Monitor

Inverter Cable

Inverter Cable for Industrial Touch Monitor

Inverter:

Inverter for Industrial Touch Monitor

LVDS Cable

LVDS Cable - Industrial Touch Monitor

Keyboard:

Keyboard - Industrial Touch Monitor

Backlight Cable

Backlight Cable - Industrial Touch Monitor

 IR:

IR - Industrial Touch Monitor

Keyboard Cable

Keyboard Cable - Industrial Touch Monitor

   AD board:

    Supply drive solution to the LCD panel

    Interface: HDMI, DVI, VGA, USB, etc.

    Language:

    Chinese, English, French, German, Russian, Spanish, etc.



    Inverte:

    Stabilize the current and voltage

 Industrial LCD Touch Screen for Industrial Touch Monitor

  Application

   23.8 inch industrial touch screens are mainly used in retail, POS, commercial display, outdoor brightness touch screen and medical, etc

23.8 inch Industrial LCD Touch Screen application for Industrial Monitor

  Factory Overview

  JFCVision is factory specialized in capacitive touch screen and industrial screen production development and marketing for more than 10 years

JFCVision Industrial Touch Monitor Factory

  Transport Packaging

  18.4-28 inch capacitive touch screen We use EPS plate and wooden box for safe packaging to ensure product safety


Bubble Pack

Bubble Pack - Industrial LCD Touch Screen

Carton

Carton - 23.8 Industrial LCD Touch Screen



Waterproofing Film

(On the surface of the
wooden box)

Waterproofing Film - 23.8 Industrial LCD Touch Screen

EPS Plate

EPS Plate - 23.8 Industrial LCD Touch Screen

Wooden Box

Wooden Box - 23.8 Industrial LCD Touch Screen

Fragile Warning Label

Fragile Warning Label - 23.8 Industrial LCD Touch Screen

Packaging process video

23.8 inch industrial LCD touch screen packaging process.

Secure packaging ensures the security of the 23.8 inch industrial LCD touch screen



  Warehouse Overview

  JFCVision's long-term stable supply of 10.1-65 inch capacitive touch screen

Warehouse Overview - JFCVision
