18.4-28 inch Capacitive Touch Screens
LCD Touch Screen 1600 nits 19 inch - JFC190CFYS.V1
Product Specification:
- Model : JFC190CFYS.V1
- Size : 19 inch
- Resolution : 1280(RGB)×1024 [SXGA]
- Brightness : 1600 cd/m2 (Typ.)
- Touch work ability : 10 points
- Application : Industrial Grade Touch Screen Monitor
| Overview | |
| JFCVision 19 inch LCD Touchscreen Features a Slim Design | |
| Specifications: | |
| TFT LCD Panels | |
| Size: | 19inches (diagonal) |
| Resolution: | 1280(RGB)×1024 , SXGA |
| Active Area: | 376.32*301.056mm (H*V) |
| Brightness: | 1600 cd/m2 (Typ.) |
| View Angle: | 85/85/80/80 (Typ.)(L/R/U/D) |
| Contrast Ratio: | 1000:1 |
| Interface: | LVDS (2 ch, 8-bit) , 30 pins |
| Frequency: | 60Hz |
| Backlight Lifetime: | 50K hours |
| Voltage input: | 5.0V (Typ.) |
| LED driver: | included |
| Touch Specifications | |
| Touch Type: | Capacitive Touch, with 2-glass solution technology (2GS) |
| Multi Touch Points: | 10 points |
| Outline Dimension | 394.20*317.34mm) |
| Active Touch Area: | Same as LCD Panel's active area |
| Touch IC: | EETI |
| Touch Control Interface: | USB 2.0 |
| Touch Control Board: | Included |
| Systems Supportable: | Android, Windows, Linux |
| Tempered Glass Surface Hardness | 7H (Typ.) (Customized) |
| Transmittance: | > 85 °C |
| Touch Supportable: | Finger, Glove or Passive Pen Input |
| Input Voltage | 3.5V~5.5V, Typ. 5V |
| Environment | |
| Operation Temperature | -30 ~ 70 °C |
| Storage Temperature | -30 ~ 70°C |
| Humidity: | 95% at 60 °C RH, no condensing |
| Adhesive types of LCD Panel and Touch | |
| Full Optical Bonding | |

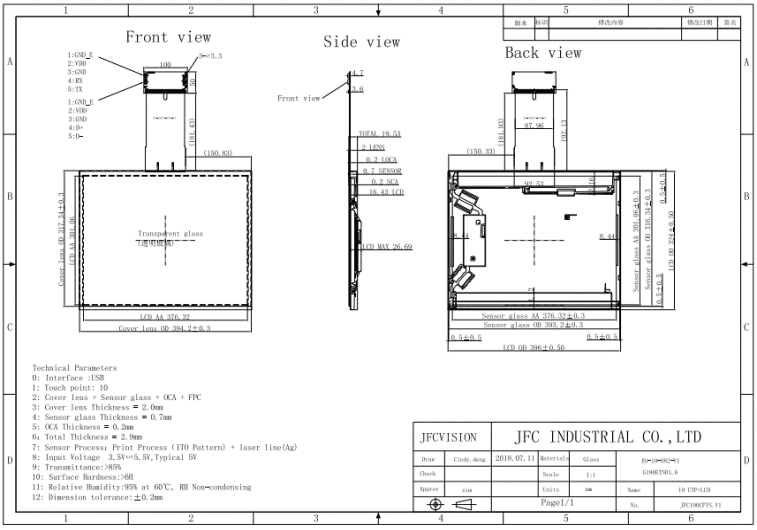

| Mechanical Drawings: | |
|
|
|
| Customization Services | |
| 1). Cover lens is tempered glass, the size and hardness can be customized. | |
| 2). Black silk area size and icons can be customized. | |
